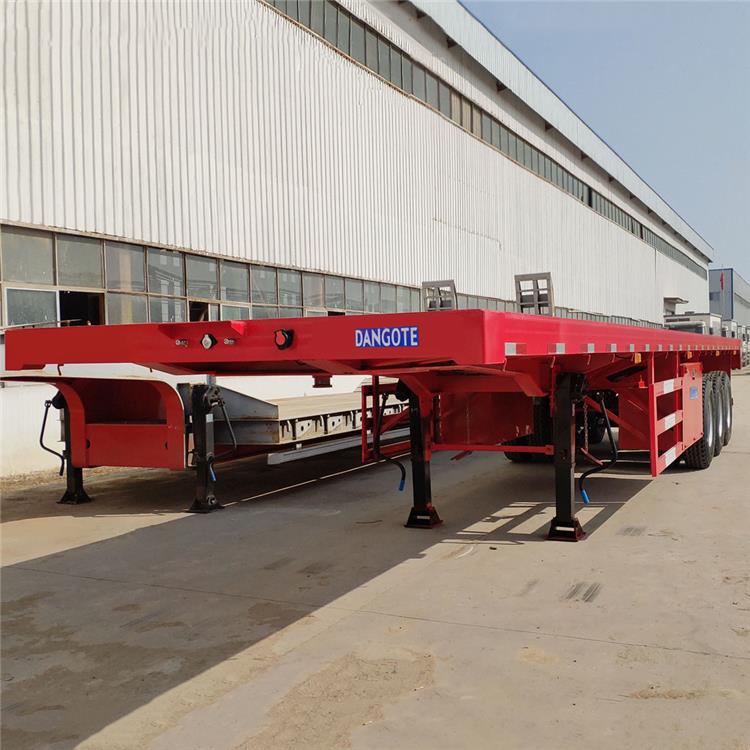

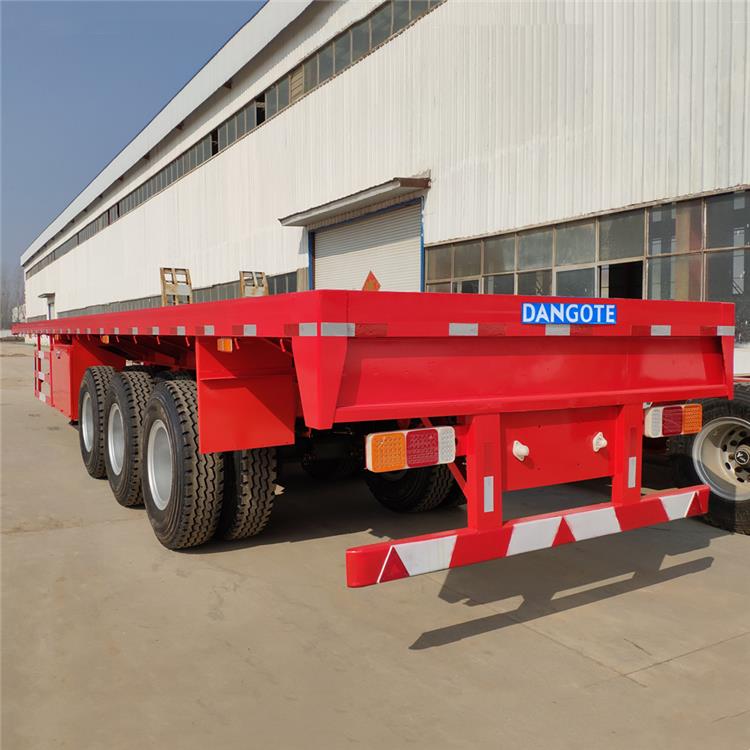

Dangote 40 ft tri axle flatbed trailer adopts high-quality steel, integrated beam design, good rigidity, strength and toughness, and is not easy to deform.
40 ft tri axle flatbed trailer use FUWA/BPW axles (Chinese famous brand), triangular tires (Chinese famous brand), WABCO valve (German brand), Jost gold needle (German brand). The 40 ft tri axle flatbed trailer uses a steel plate axle, 10 leaf springs, and the bearing capacity is stronger.

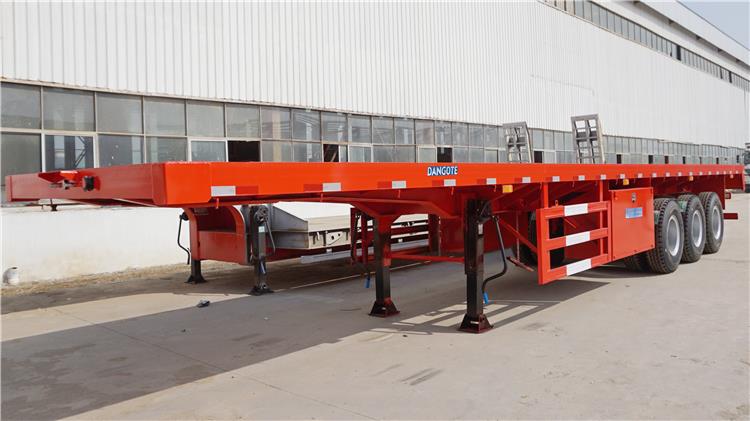

Dangote 40 ft Tri Axle Flatbed Trailer for Sale Near Me in Nigeria

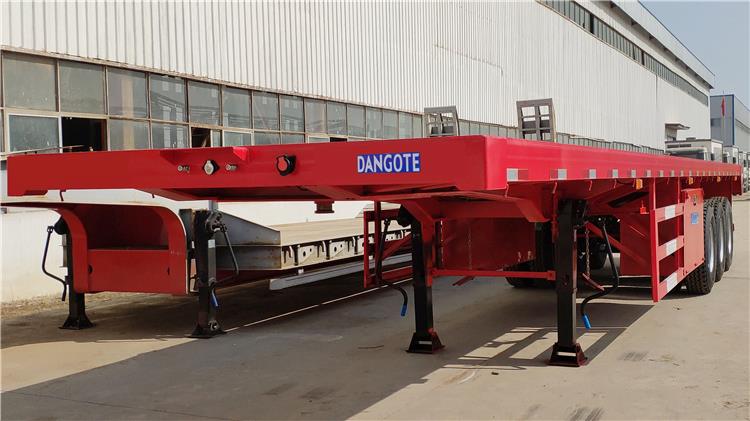

Dangote 40 ft Tri Axle Flatbed Trailer for Sale Near Me in Nigeria
Dangote 40 ft Tri Axle Flatbed Trailer for Sale Near Me in Nigeria

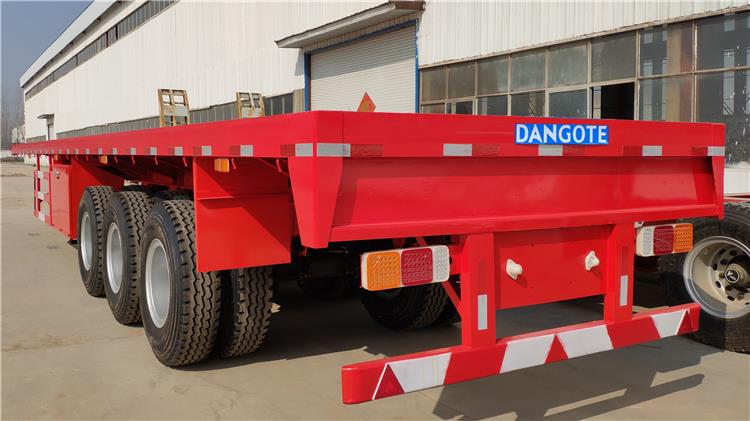

Dangote 40 ft Tri Axle Flatbed Trailer for Sale Near Me in Nigeria
Dimension(mm): 12500x2500x1550mm
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Loading capacity(ton): ≤60T

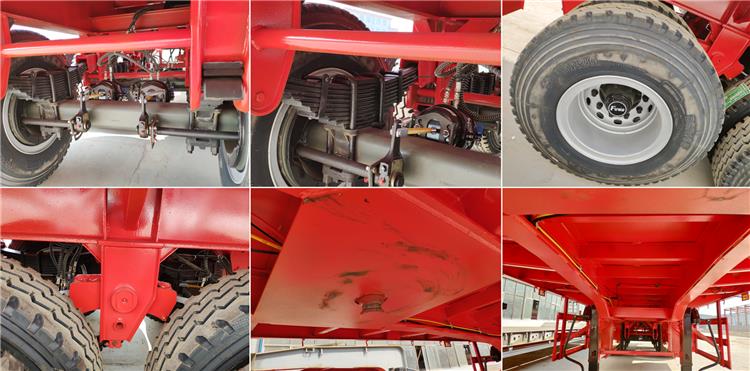

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Rim: 9.00-22.5 or 9.75-22.5
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
