40 ft triple axle flat bed trailer makes it easy to load equipment onto the trailer, quickly relocating this bulky cargo to the destination. For large building and construction projects, bulky materials will often need to be transported to the job site.
In many cases, scrap metal is unwieldy and hard to organize. 40 ft triple axle flat bed trailer is often used to transport landscaping goods and equipment.

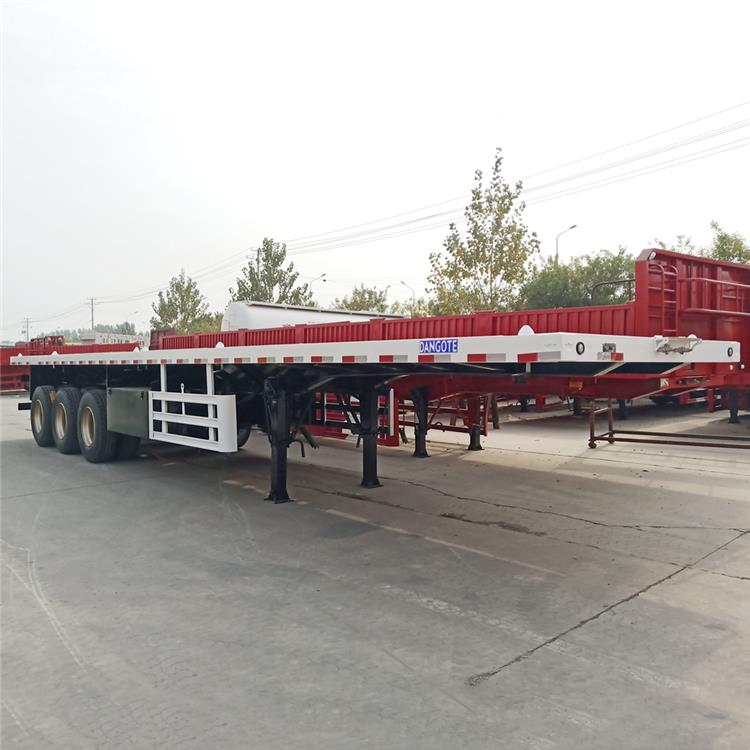

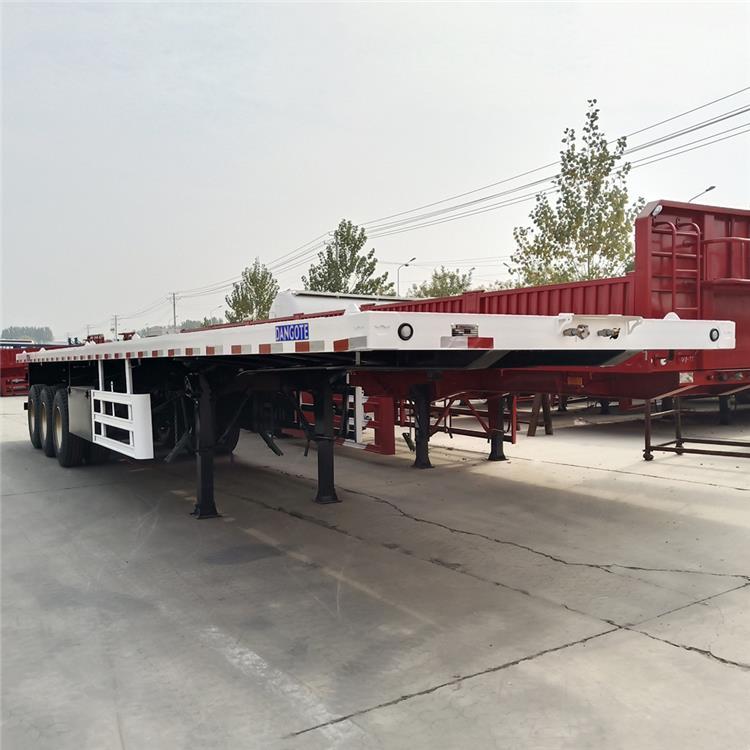

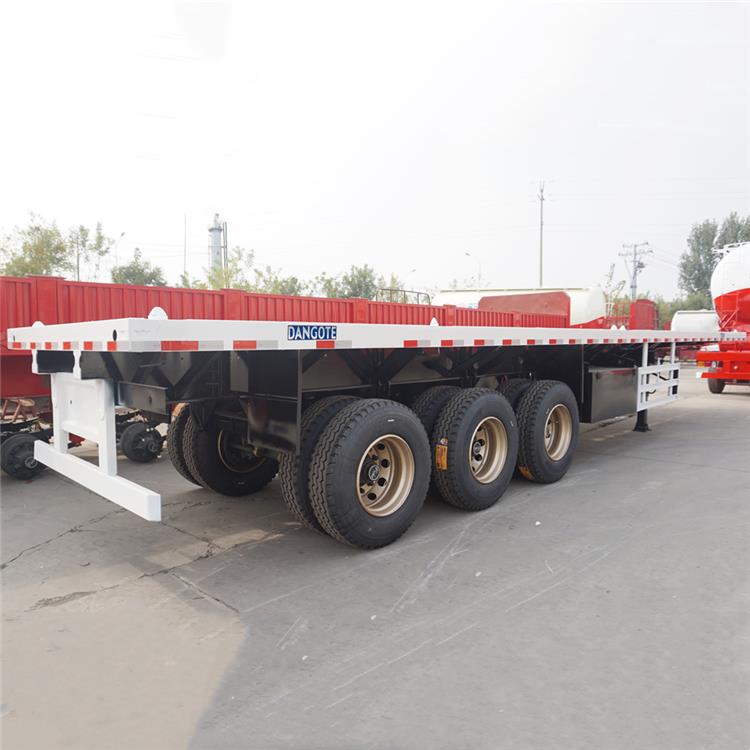

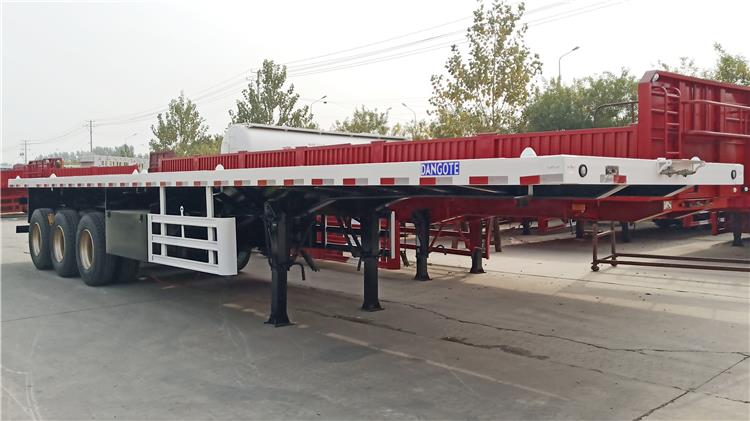

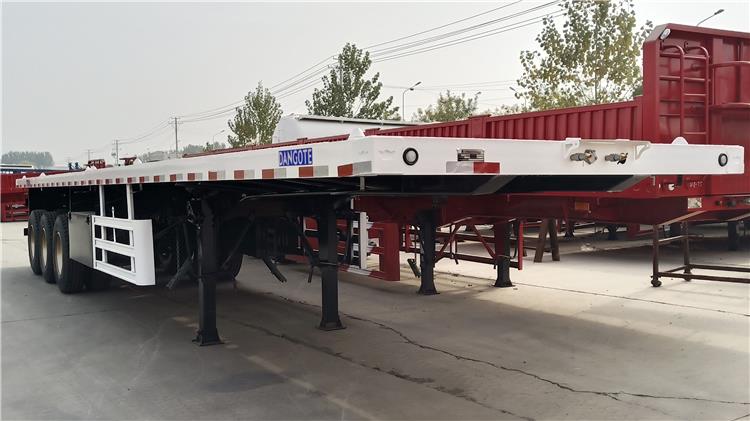

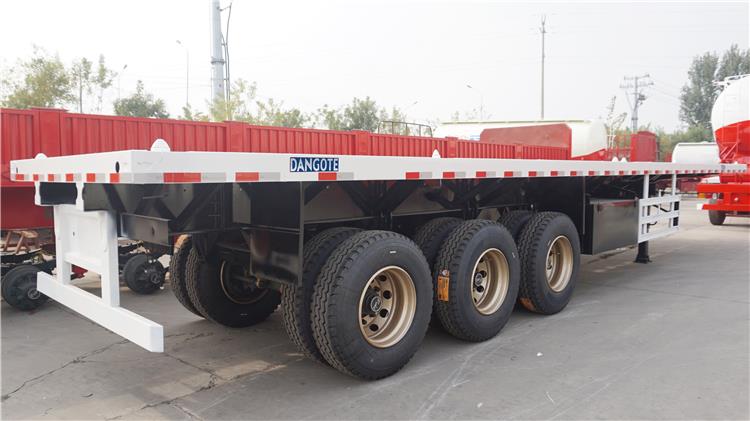

40 ft Triple Axle Flat Bed Trailer for Sale | Platform Semi Trailer
40 ft Triple Axle Flat Bed Trailer for Sale | Platform Semi Trailer
40 ft Triple Axle Flat Bed Trailer for Sale | Platform Semi Trailer
Model: 40 ft triple axle flat bed trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T , FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (especially intended for oversea market)
ABS: Optional
Light: LED light (especially intended for the oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The toolbox contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
