Dangote tri axle 80 ton detachable gooseneck trailer is mainly used for construction, engineering and equipment transportation. All kinds of different models of detachable gooseneck trailer could meet all kinds of requirements of heavy-duty job.
Dangote tri axle 80 ton detachable gooseneck trailer have different capacities, such as 20 T/tons, 30 T/tons, 50 T/tons, 70 T/tons, 80 T/tons and 100 T/tons, 120 T/tons, 150 T/tons. Each type uses a different number of axles from 2, 3, and 4 axles, 3 line 6 axle, 4 line 8 axle.
When your load exceeds the length of a traditional trailer, we offer a range of extendable solutions. For instance, choose platform and lifting deck models or heavy-duty models with mechanical or hydraulic gooseneck.
The detachable gooseneck trailer’s center of gravity is lower, the better the stability and safety, transport overheight cargo and overhead obstacles by the stronger the ability.

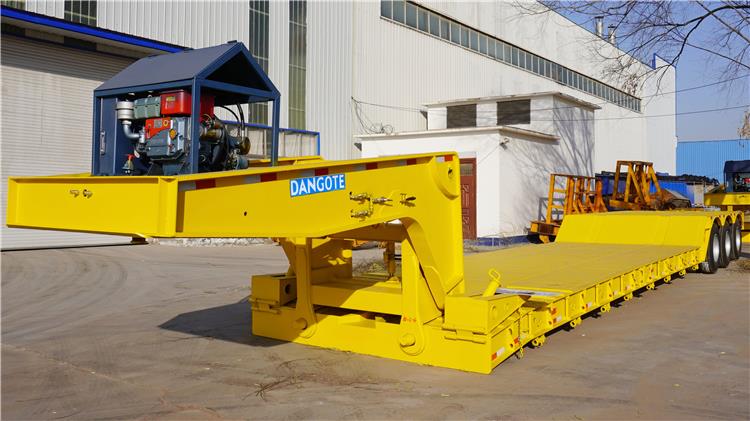

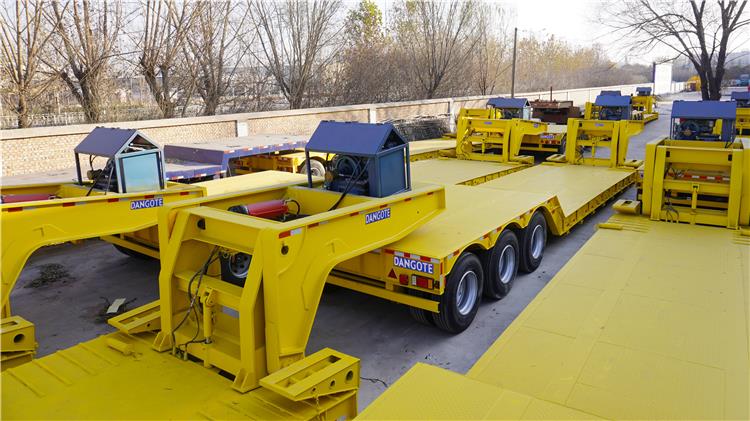

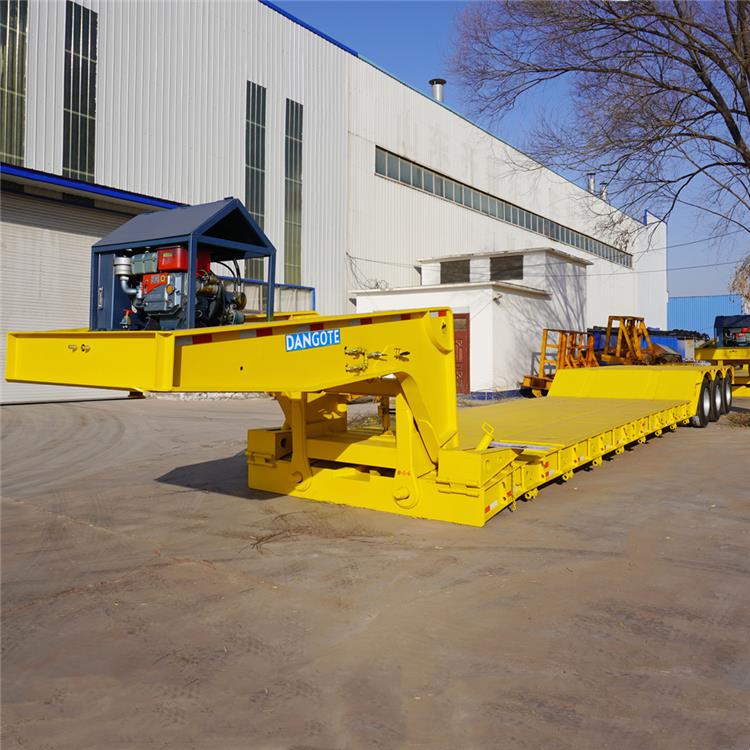

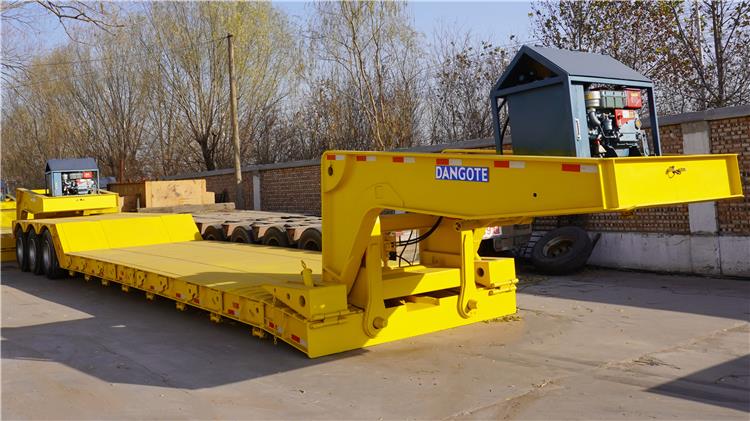

Dangote Tri Axle 80 Ton Detachable Gooseneck Trailer for Sale In Nigeria
Dangote Tri Axle 80 Ton Detachable Gooseneck Trailer for Sale In Nigeria
Dangote Tri Axle 80 Ton Detachable Gooseneck Trailer for Sale In Nigeria
Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Lowboy Trailer Price Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
60 Ton Lowboy Trailer ABS: Optional
Lowboy Trailer Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Lowboy Gooseneck Trailer Voltage: 24V
60 Ton Lowboy Trailer Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
