The 45000l aluminum tankers trailers body is made of high-quality aluminum alloy, which is a non-flammable material, which is not easy to generate sparks and has lower static electricity accumulation, making transportation and driving safer.
All the 45000l aluminum tankers trailers and dispatch produced by Dangote will be strictly inspected in the inspection room before they leave the factory, and the water injection test will be used to verify the tightness of the tank to avoid oil leakage in subsequent use.

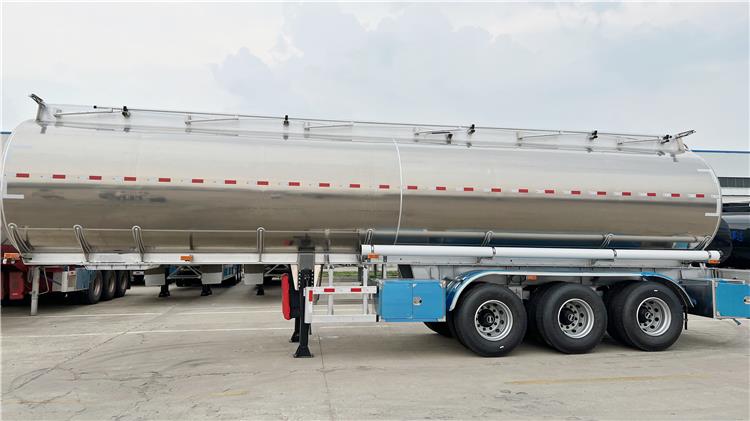

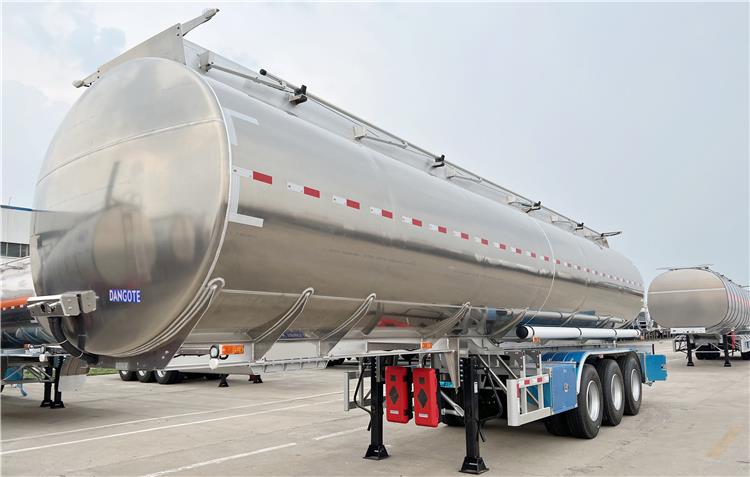

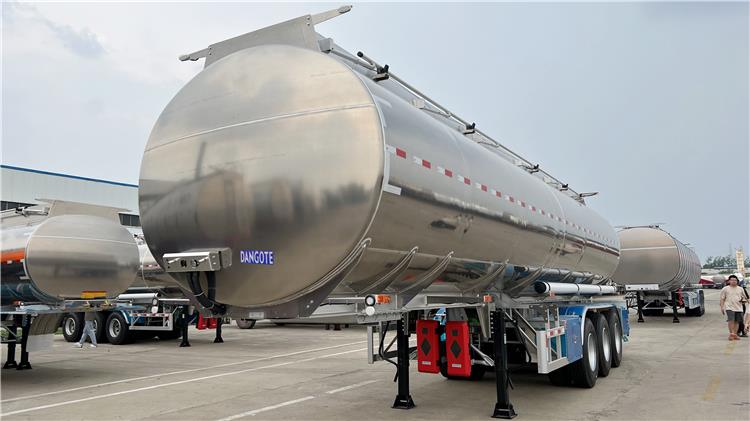

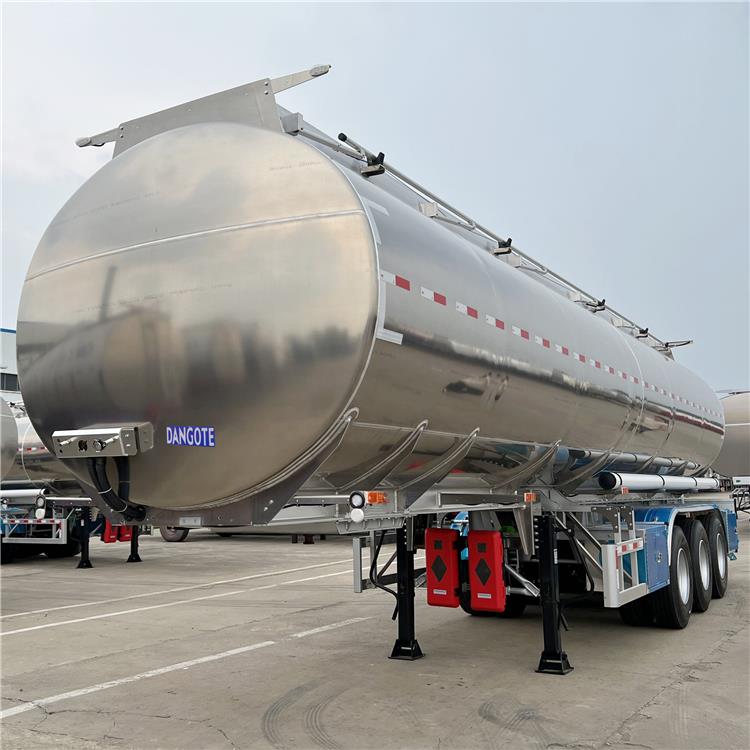

Tri Axle 45000l Aluminum Tankers Trailers Price for Sale In Zimbabwe
Tri Axle 45000l Aluminum Tankers Trailers Price for Sale In Zimbabwe
Tri Axle 45000l Aluminum Tankers Trailers Price for Sale In Zimbabwe
Dimension: 12000mmx2490mm x3990mm (the exact size depends on the final design.)
Total volume: 45000 liters
Tank Body Material: 5mm
End plate: 5mm
Axle: 3 axles,13T, FUWA brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single Compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
